- Ljubljanica River experimental catchment monitoring system


The Ljubljanica River catchment is an example of hydrologically highly heterogeneous catchment (karstic hydrogeological characteristics, torrential characteristics, lowland Ljubljanica River moor area). Hydrological and hydraulic experimental monitoring system covers several sub-catchments of different sizes. The monitoring system consists of the field equipment owned by: University of Ljubljana, Faculty of Civil and Geodetic Engineering and Environmental Agency of the Republic of Slovenia (ARSO).

Main Ljubljanica River experimental catchment is equipped with 18 rain gauge stations (Figure 1) and 17 water stations in the lower section of the river (Figure 2). 3 water stations have online connection. At 3 locations, dissolved oxygen (DO) concentrations are measured by automatic DO sensor.

Ljubljanica

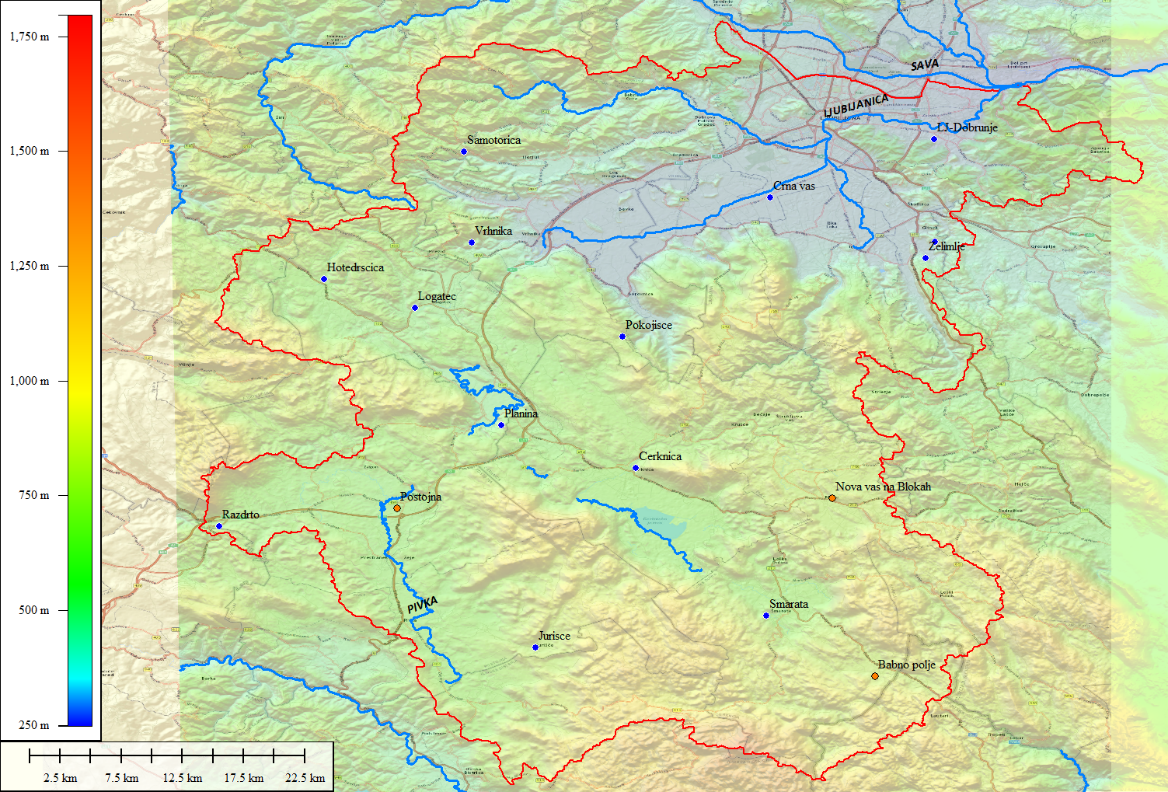

Figure 1: Rain gauge stations at the Ljubljanica River experimental catchment (Red rectangle indicates area shown in Figure 2.

Ljubljanica_WAter_level
Figure 2: Water stations in the lower (lowland) part of the Ljubljanica River.

The monitoring system at the Gradaščica River (tributary of the Ljubljanica River) is shown in Figure 3. The rainfall is recorded at 10 tipping bucket rain gauges, one meteorological station and 1 disdrometer, stream discharge at 3 waters stations. At two water stations, a multi parameter water quality sonde can be installed. The sonde is equipped with temperature, pH, electrical conductivity, nitrate and turbidity sensor.

Gradaščica
Figure 3: Monitoring system at the Gradaščica River.


- Eksperimentalno porečje Gradaščica:


Opis eksperimentalnega porečja:

Na katedri za splošno hidrotehniko se izvajajo hidrološke meritve z naslednjimi instumenti:

Uporabljeni instrumenti:

Evaporacijska postaja - Model 3590
Hellmanov dežemer
Lizimeter Decagon
Disdrometer OTT Parsivel

Rezultati meritev:

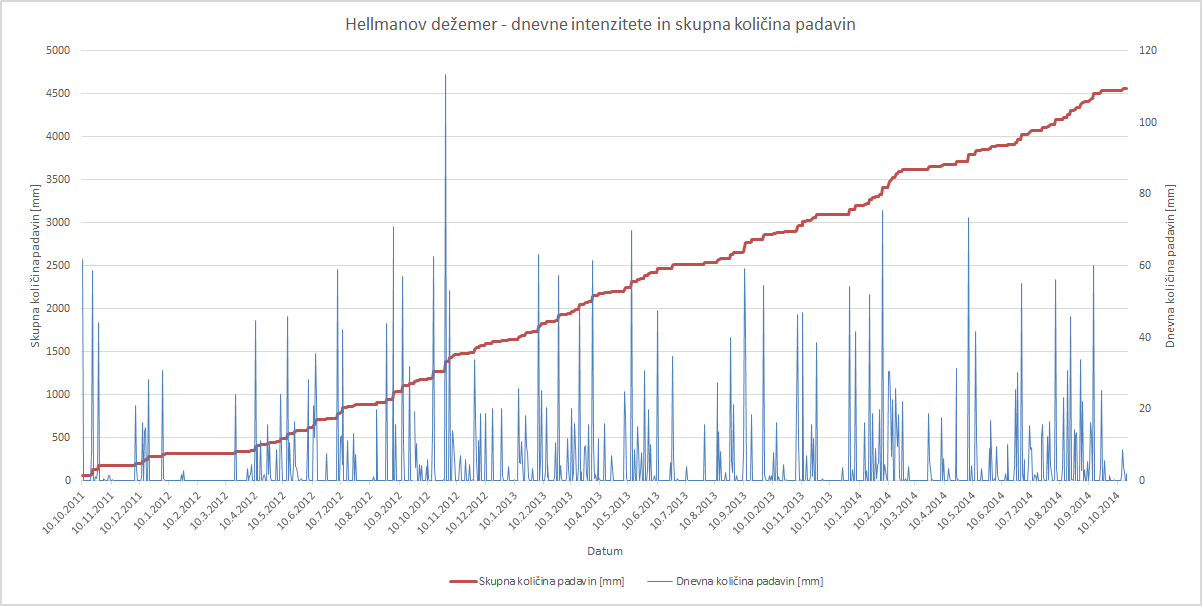

Hellmannov dežemer - količina in intenziteta padavin od 10.10.2011 do 20.10.2014:
PDF; XLS; JPG

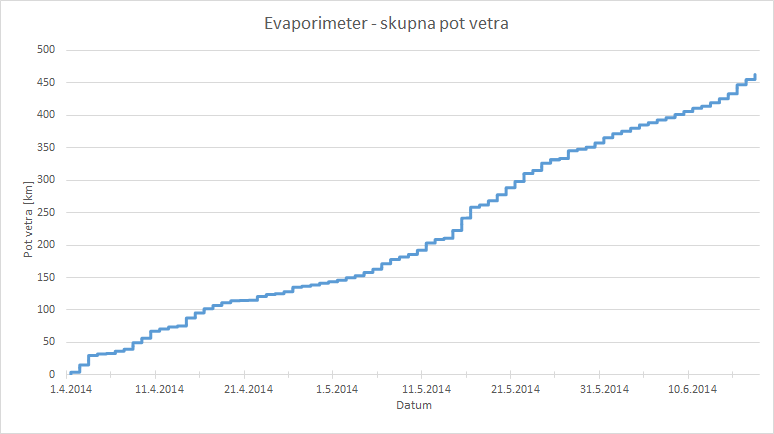

Evaporacijska postaja - Model 3590 od 16.4.2014 do 6.8.2014

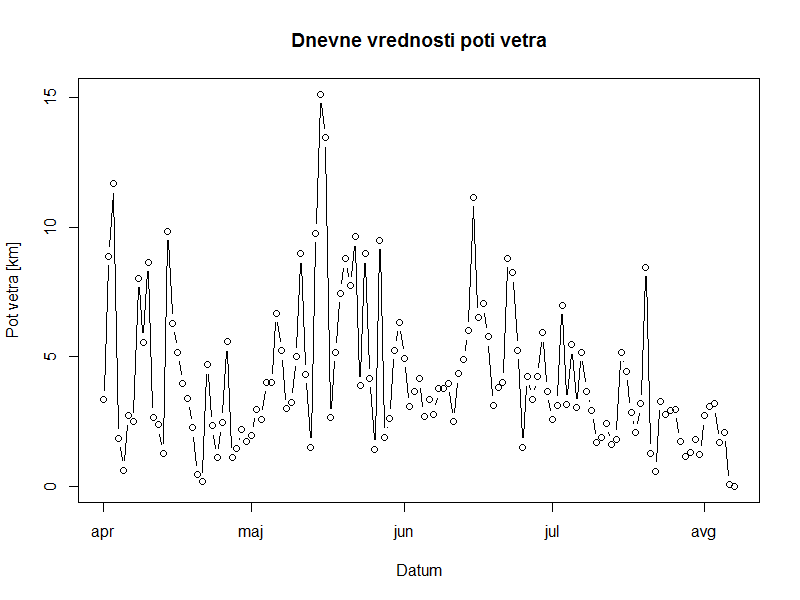

PDF; XLS; JPG - Skupna pot vetra; JPG - Dnevna pot vetra

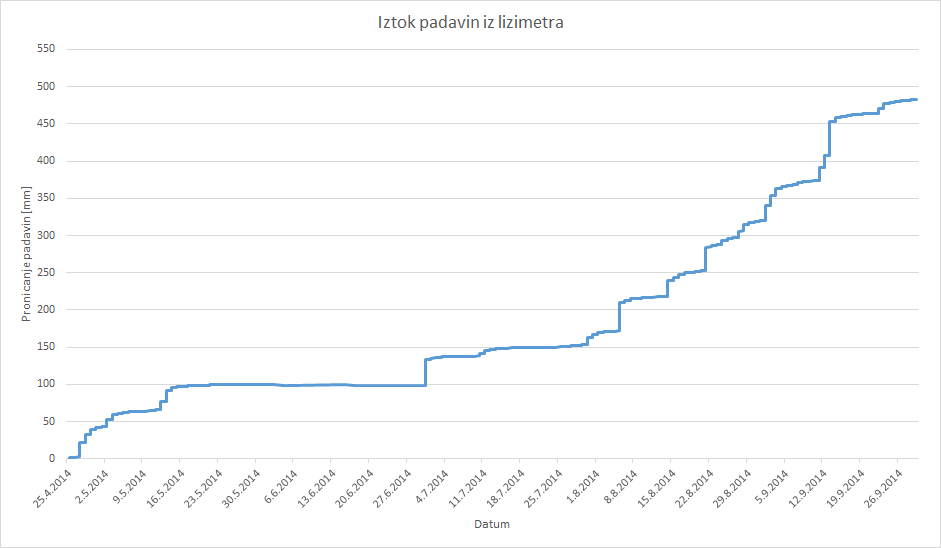

Lizimeter Decagon - količina pronicanja padavin od 25.4.2014 do 29.9.2014
XLS; JPG

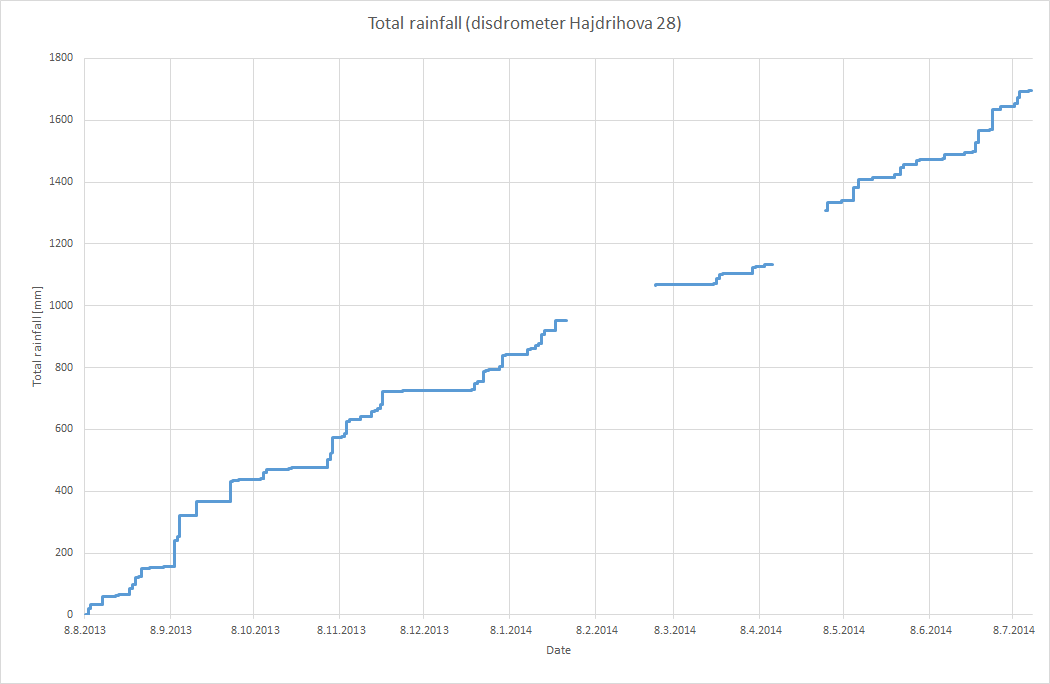

Disdrometer OTT Parsivel - količina in intenziteta padavin od 8.8.2013 do 14.7.2014
XLS; JPG - Skupna količina padavin

Fotogalerija eksperimentalega porečja:


- SedAlp - ALPINE SPACE PROGRAMME:

Online podatki:
Podatki o količini padavinah v realnem času - disdrometer Črni Vrh
